Specify fill patterns

Specify fill patterns for the map variable pattern (see tm_polygons()), either as constant value or as values of a scale, e.g. tm_scale_categorical(). The arguments are vectorized, so one call can specify several patterns. A plain character vector of pattern types and shortcuts can also be used instead, as well as a list of tm_patterns() calls.

Usage

tm_patterns(
  type = "hatch",
  angle = NA,
  random = NA,
  length = NA,
  amplitude = NA,
  grain = NA,
  levels = NA,
  contrast = NA,
  seed = NA
)

Arguments

type: Pattern type, shortcut, or pattern set. See details.
angle: Angle of the motif in degrees, counter-clockwise from horizontal. For "hatch", 0 means horizontal lines and 45 lines from lower left to upper right. For "sketch", the direction of the pencil strokes.
random: Randomness of the placement of dots, circles, or crosses, between 0 (regular grid) and 1 (displacement of up to half a grid cell). Each grid cell contains one element, so elements are spread evenly, although they may touch at high densities. For "mottle", the randomness of the shades of the patches, between 0 (the shades follow smooth noise, so neighboring patches differ by one shade) and 1 (each patch has a random shade).
length: Length of dashes, bricks, or herringbone blocks, relative to the spacing.
amplitude: Amplitude of waves and zigzag lines, relative to the spacing.
grain: Size of the relief of "terrain": the largest wavelength, relative to the spacing at density 1 (which is 1/20 inch by default, see the scale argument of tm_layout()). By default 1. For "mottle", the size of the patches (the largest are 12 times as large as the relief of "terrain"), and for "sketch", the width of the pencil strokes (about half the spacing at density 1). The relief cannot be finer than the resolution allows (wavelengths of at least 3 pixels), so smaller values only have an effect at high resolutions, e.g. tmap_save() with 300 dpi.
levels: Number of shades of "mottle", by default 5: the fill color, two darker, and two brighter shades (with an even number, the fill color itself is not one of them).
contrast: Contrast of "mottle": a factor for the differences between the shades, by default 1 (at full strength, the darkest shade is 40% pattern_col over the fill color, and the brightest 20% white).
seed: Seed (a positive integer) of the random placement of dots, circles, or crosses (with random > 0), and of the textures "terrain", "mottle", and "sketch". Patterns with different seeds have elements at different positions, which is useful when several dot patterns are drawn on top of each other, e.g. a dot density map with one layer per category. By default 1.

Value

A character vector of class tmap_patterns with one pattern specification per element.

Details

Pattern types:

Type	Parameters
`"none"`	–
`"hatch"`	`angle` (default 45)
`"crosshatch"`	`angle` (default 0)
`"dots"`	`random` (default 0), `seed` (default 1)
`"dashes"`	`angle` (default 0), `length` (default 0.5)
`"bricks"`	`angle` (default 0), `length` (default 2)
`"herringbone"`	`angle` (default 0), `length` (default 2)
`"hexagons"`	`angle` (default 0)
`"waves"`	`angle` (default 0), `amplitude` (default 0.25)
`"zigzag"`	`angle` (default 0), `amplitude` (default 0.25)
`"circles"`	`random` (default 0), `seed` (default 1)
`"crosses"`	`random` (default 0), `seed` (default 1)
`"noise"`	–
`"terrain"`	`grain` (default 1), `seed` (default 1)
`"mottle"`	`grain` (default 1), `levels` (default 5), `contrast` (default 1), `random` (default 0), `seed` (default 1)
`"sketch"`	`angle` (default 45), `grain` (default 1), `seed` (default 1)

Shortcuts: "hatch_up" (same as "hatch"), "hatch_down" (angle 135), "hatch_horizontal" (angle 0), "hatch_vertical" (angle 90), "crosshatch_diagonal" (crosshatch with angle 45), and "stipple" (dots with random = 0.7).

Pattern sets, which are used like color palettes:

Set	Patterns	Use
`"mixed"`	14: hatch, dots, hatch_down, bricks, waves, ...	default; patterns that differ most
`"classic"`	8: hatches in four directions, crosshatches, dots, dashes	the classic black-and-white look
`"lines"`	10: hatches, waves, zigzag, dashes, herringbone, crosshatches	line patterns only
`"shapes"`	6: dots, bricks, circles, hexagons, crosses, noise	no line patterns, e.g. to combine with a hatched layer

Used as values of a scale, the first n patterns are taken. A "-" prefix reverses the order. With tm_patterns(), a set is expanded to all its patterns, which can be subsetted, e.g. tm_patterns("classic")[c(1, 3, 5)].

The patterns are shown with tmap_show_values(): all types and shortcuts with tmap_show_values("pattern"), and a set with e.g. tmap_show_values("pattern", values = "classic").

The spacing between the pattern elements is determined by the map variable pattern_density, the line width or dot size by pattern_size, and the color by pattern_col. The parameters length and amplitude are relative to that spacing, so the whole motif is scaled with the density.

The pattern type "terrain" is a texture rather than a motif: random relief, shaded with light from the northwest, which looks like rough terrain. It is drawn as highlights (white) and shadows (pattern_col) on top of the fill color, which cancel out roughly, so the average color does not change much. Its strength is determined by pattern_density (between 0, no texture, and 1), which makes it suitable for showing uncertainty: the rougher, the less certain. pattern_size is not used.

Two other textures are meant to show uncertainty about the fill color rather than about heights:

"mottle" looks like a surface that is painted poorly: large patches with sharp edges, painted in a few (levels) shades that are slightly darker (pattern_col) or brighter (white) than the intended color. As for "terrain", pattern_density is the strength, and contrast scales the differences between the shades. By default, the shades follow smooth noise, so a patch only borders on patches of the next darker or brighter shade, which may look like a density surface or elevation. With random = 1, each patch gets a random shade, so that any shades can be neighbors.
"sketch" looks like a sketchy pencil drawing: the fill color is only applied in pencil strokes, with white paper in between. pattern_density determines how much of the paper is visible, from 0 (fully colored) to 1 (about two thirds paper). pattern_col and pattern_size are not used. Since the paper is drawn on top of the fill, it is always white, regardless of the background.

In plot mode, these textures require a graphics device that supports clipping paths.

Examples

tm_patterns("hatch", angle = c(0, 45, 90, 135))
#> [1] "hatch(angle=0)"   "hatch(angle=45)"  "hatch(angle=90)"  "hatch(angle=135)"
tm_patterns(c("dots", "stipple", "bricks"))
#> [1] "dots(random=0)"           "dots(random=0.7)"
#> [3] "bricks(angle=0,length=2)"

# as values of a scale
tm_shape(World) +
  tm_polygons(pattern = "economy",
    pattern.scale = tm_scale_categorical(
      values = tm_patterns(c("hatch", "dots", "bricks"))))

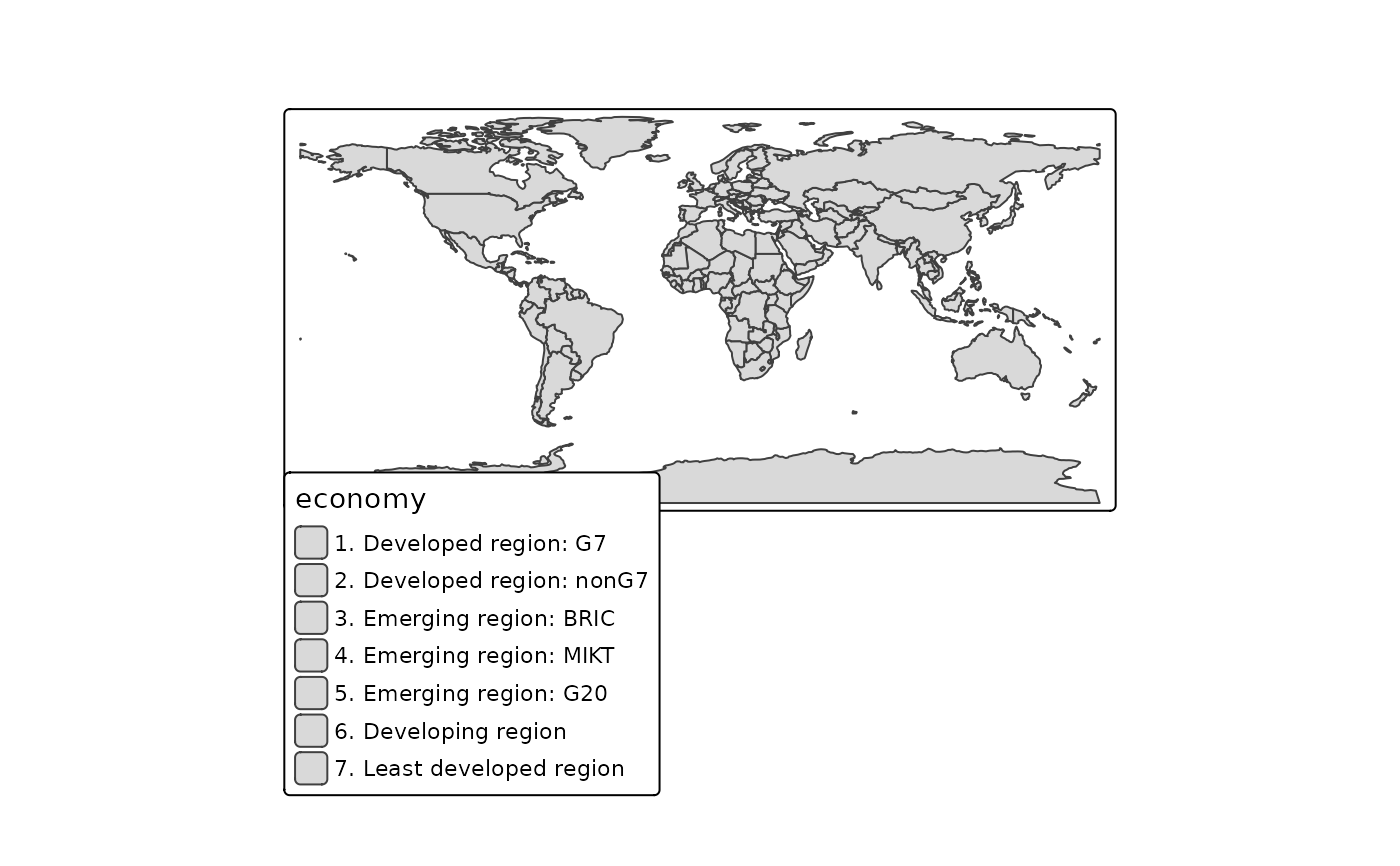

#> Warning: [pattern] the number of patterns (3) is smaller than the number of classes (7),
#> so patterns are recycled
