tmap foundations: units

Source: vignettes/foundations_units.Rmd
foundations_units.Rmd

Why units matter

Most of the time tmap chooses sensible values automatically, so the units behind them stay invisible. They become relevant the moment you set a value by hand, for example:

  • a constant visual value via tm_const() (e.g. tm_polygons(lwd = 2)),
  • an output range via values.range or values.scale in a scale function,
  • a margin, a component size, or a font size in tm_layout() or a component function.

This vignette collects the units used throughout the package. There are two groups: the visual variable units that data values are mapped to, and the layout units used for margins, component sizes, and fonts.

Visual variable units

A visual variable (fill, size, lwd, …) maps a data variable to an output value with a specific unit. The same units apply when you supply a constant instead of a data variable.

Variable Unit Notes
fill, col, bgcol color a color name, hex string, or palette
fill_alpha, col_alpha, bgcol_alpha proportion 0–1 0 = transparent, 1 = opaque
size (symbols, bubbles, squares, dots) typographic lines 1 line ≈ 1/6 inch; scaled by values.scale
size (circles) meters plain numeric, or a units object
size (text, labels) multiplier 1 = the base font size
lwd lwd base R line-width units (≈ 0.75 pt at 96 dpi)
lty — integer 1–6, or a name ("solid", "dashed", …)
shape — integer pch 1–25, or a single character
angle degrees 0–360, clockwise from north
fontface — "plain", "bold", "italic", "bold.italic"

Color

A color is any R color name or hex string, so "red", "#FF0000", and "#FF000080" (with alpha) are all valid:

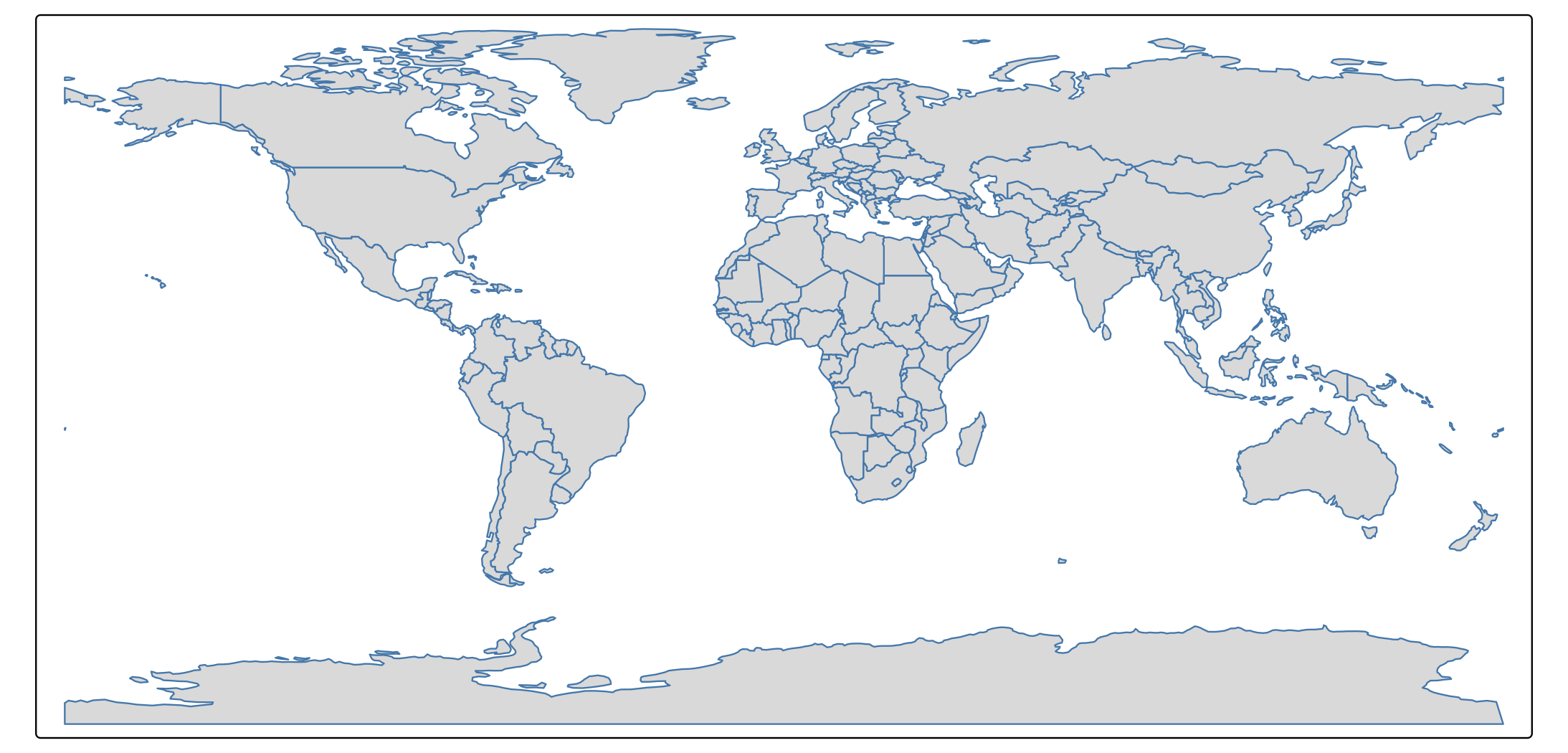

tm_shape(World) +
  tm_polygons(fill = "grey85", col = "#4477AA", lwd = 1)
#> [tip] Consider a suitable map projection, e.g. by adding `+ tm_crs("auto")`.
#> This message is displayed once per session.

Color palettes

Wherever a single color is expected, a palette defines the colors used by a scale. A palette is either a vector of colors or the name of a cols4all palette:

# a named cols4all palette

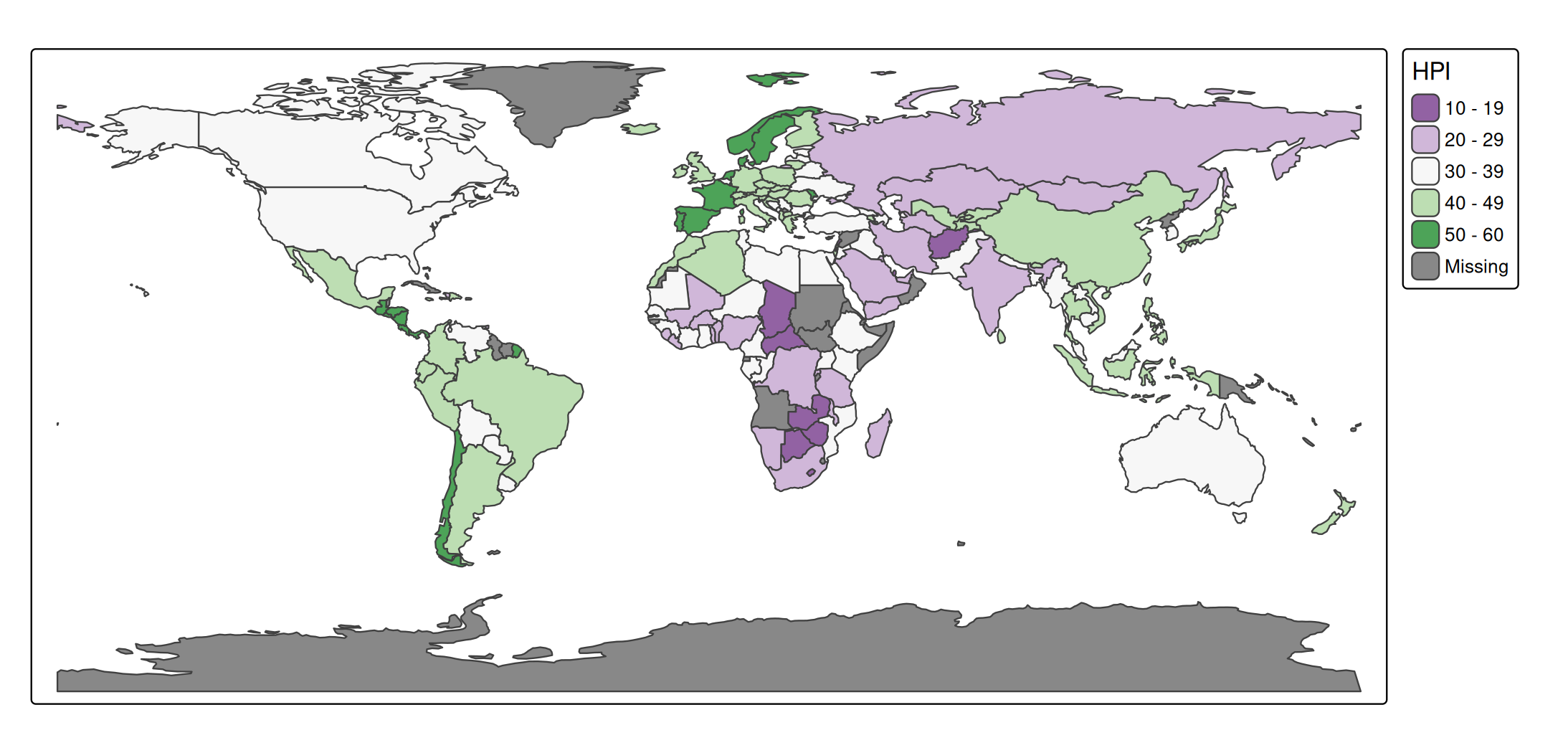

tm_shape(World) +
  tm_polygons("HPI", fill.scale = tm_scale_intervals(values = "pu_gn"))

# an explicit vector of colors

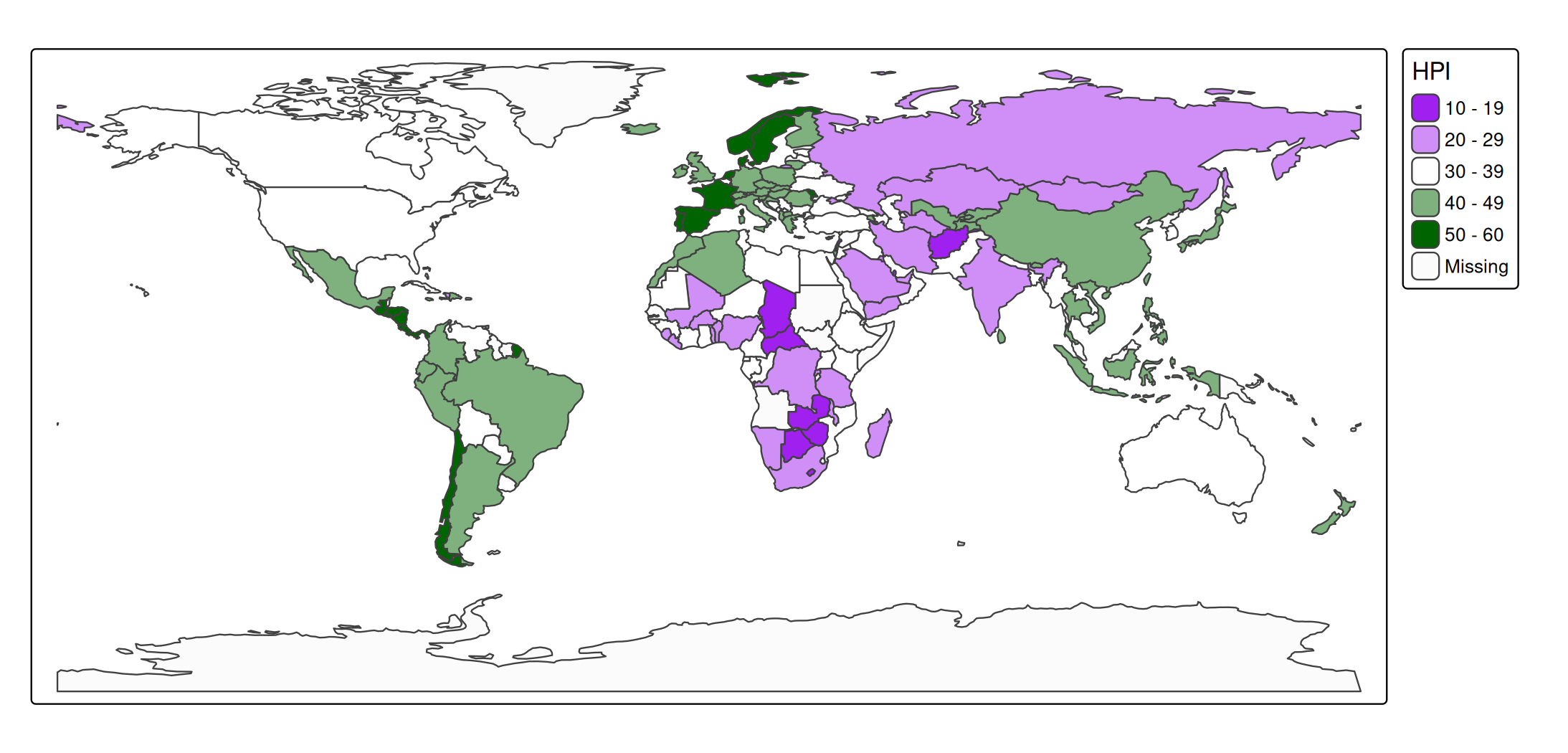

tm_shape(World) +
  tm_polygons("HPI", fill.scale = tm_scale_intervals(values = c("purple", "white", "darkgreen")))

A leading "-" reverses a named palette (e.g. "-pu_gn"). The full set of palette names is available via cols4all::c4a_gui().

Transparency

Alpha (fill_alpha, col_alpha, bgcol_alpha) is a proportion between 0 (fully transparent) and 1 (fully opaque):

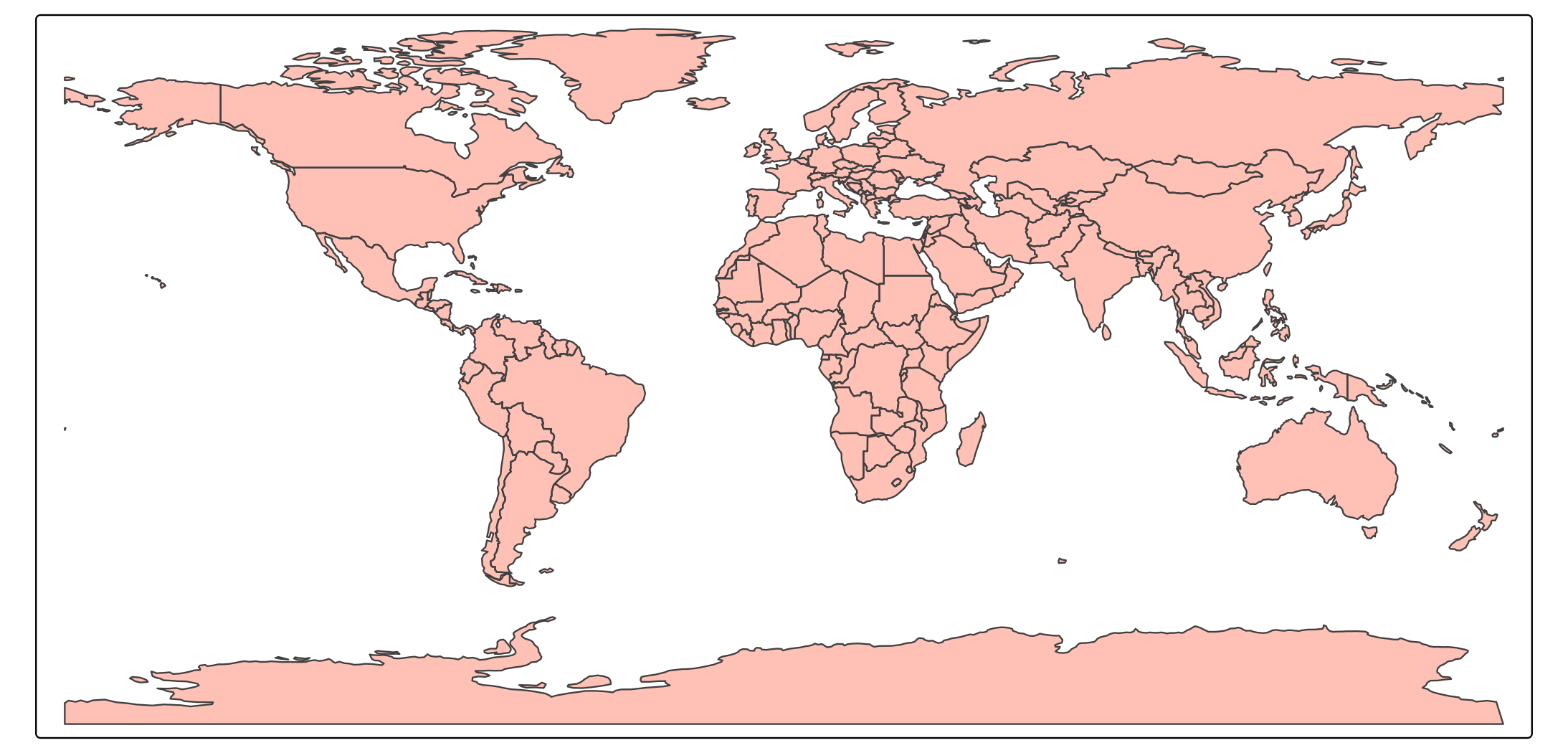

tm_shape(World) +
  tm_polygons(fill = "tomato", fill_alpha = 0.4)

Size

size is the one visual variable whose unit depends on the layer, because three different things are sized in three natural units:

  • In tm_symbols(), tm_bubbles(), tm_squares(), and tm_dots(), size is measured in typographic lines (one line ≈ 1/6 inch). These symbols keep a fixed screen size, so they do not grow when you zoom in view mode. The global multiplier tmap_options(values.scale = list(...)) rescales all symbols without changing the data mapping.

  • In tm_circles(), size is a geographic radius in meters. A plain number is read as meters; a units object is converted automatically, so units::as_units(50, "km") is a 50 km radius. Because the radius is geographic, circles do scale with zoom in view mode.

  • In tm_text() and tm_labels(), size is a multiplier of the base font size (see fonts below), so size = 1.5 is 1.5× the default text size.

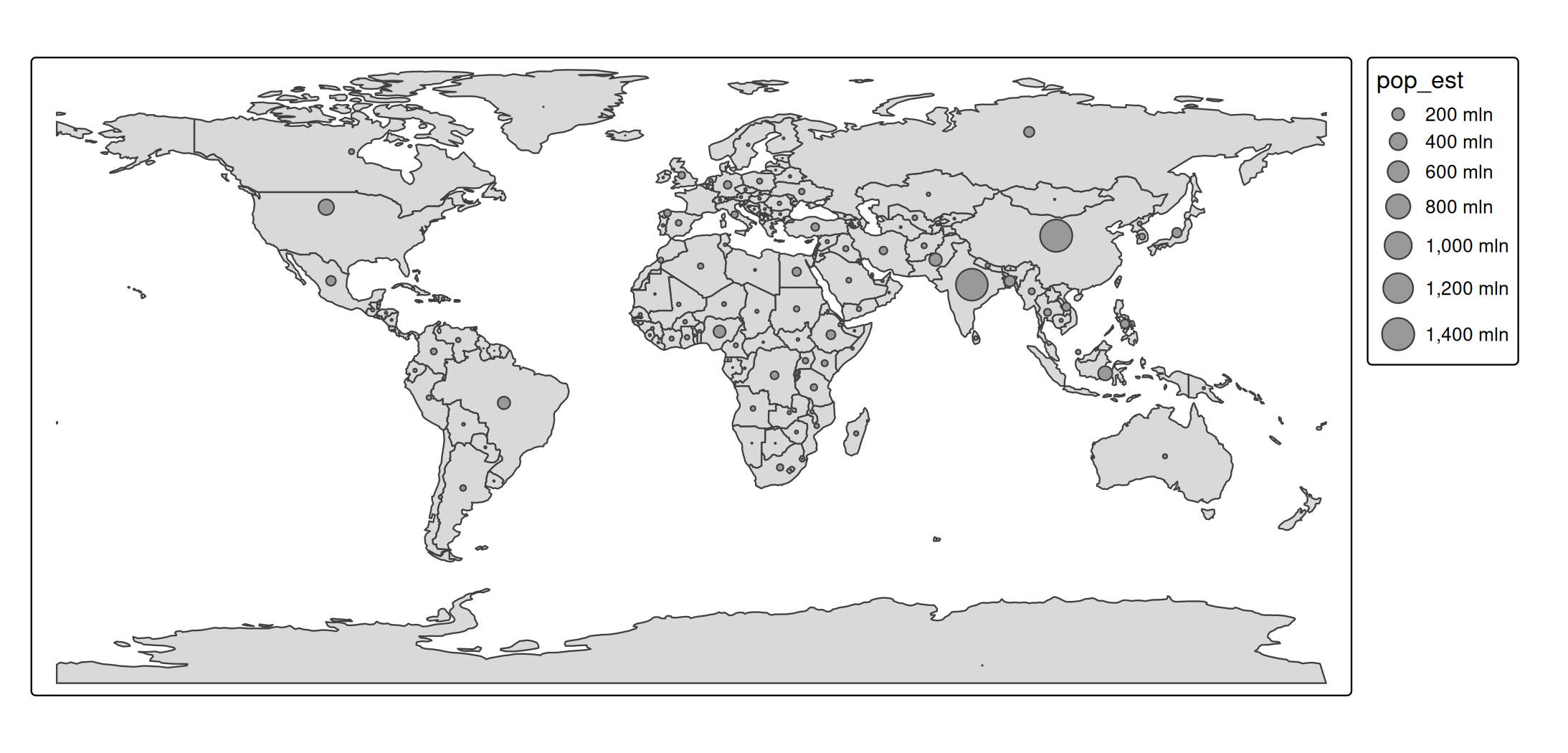

tm_shape(World) +
  tm_polygons() +
  tm_bubbles(size = "pop_est")

Line width and line type

lwd uses base R’s line-width units (the same lwd you pass to par() or lines()); it is not measured in pixels, though at 96 dpi one unit is roughly 0.75 pt. lty is an integer 1–6 or a name such as "dashed":

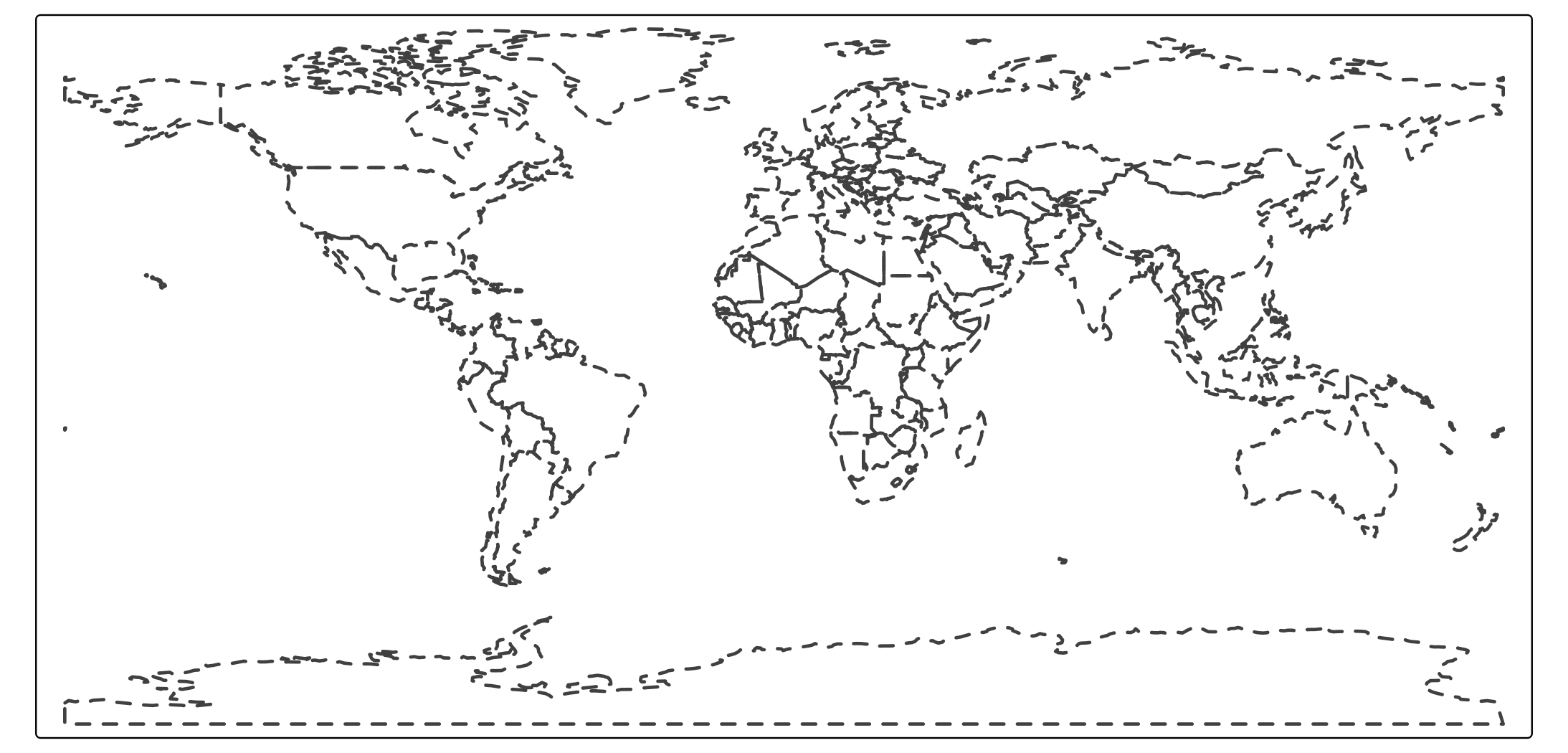

tm_shape(World) +
  tm_borders(lwd = 2, lty = "dashed")

Shape

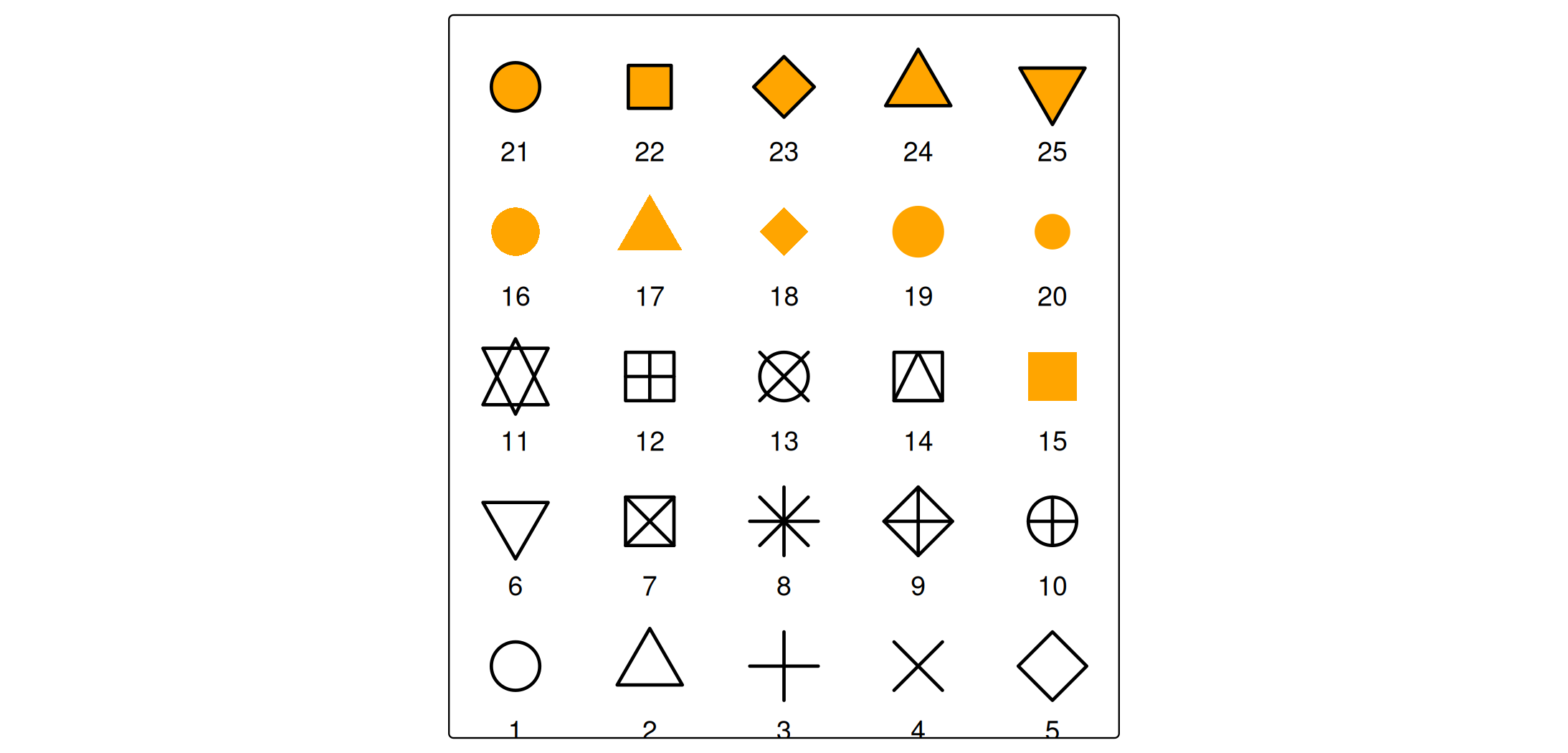

shape is an integer pch code between 1 and 25, the same plotting symbols base R uses. The map below plots all 25:

atlantic_grid = cbind(expand.grid(x = -51:-47, y = 20:24), id = seq_len(25))
x = sf::st_as_sf(atlantic_grid, coords = c("x", "y"), crs = 4326)

tm_shape(x, bbox = tmaptools::bb(x, ext = 1.2)) +
  tm_symbols(
    shape = "id",
    size = 2,
    lwd = 2,
    fill = "orange",
    col = "black",
    shape.scale = tm_scale_asis()) +
  tm_text("id", ymod = -2)

Codes 21–25 have both a fill (fill) and a border (col); the lower codes use col only.

Angle and fontface

angle (e.g. for tm_symbols() or tm_text()) is in degrees, clockwise from north. fontface is one of "plain", "bold", "italic", or "bold.italic".

Layout units

The second group of units controls the frame, the margins, and the components (legends, titles, scale bars, …). These are independent of the data.

Margins

There are three margin sets, each a vector of four numbers in the order bottom, left, top, right:

  • inner.margins — between the spatial data and the map frame, relative to the map frame (so 0.25 is a quarter of the frame width or height).
  • meta.margins — the band reserved for components outside the map, relative to the device.
  • outer.margins — between the plot and the device border, relative to the device.

In every case 1 means the full width (for left/right) or full height (for top/bottom).

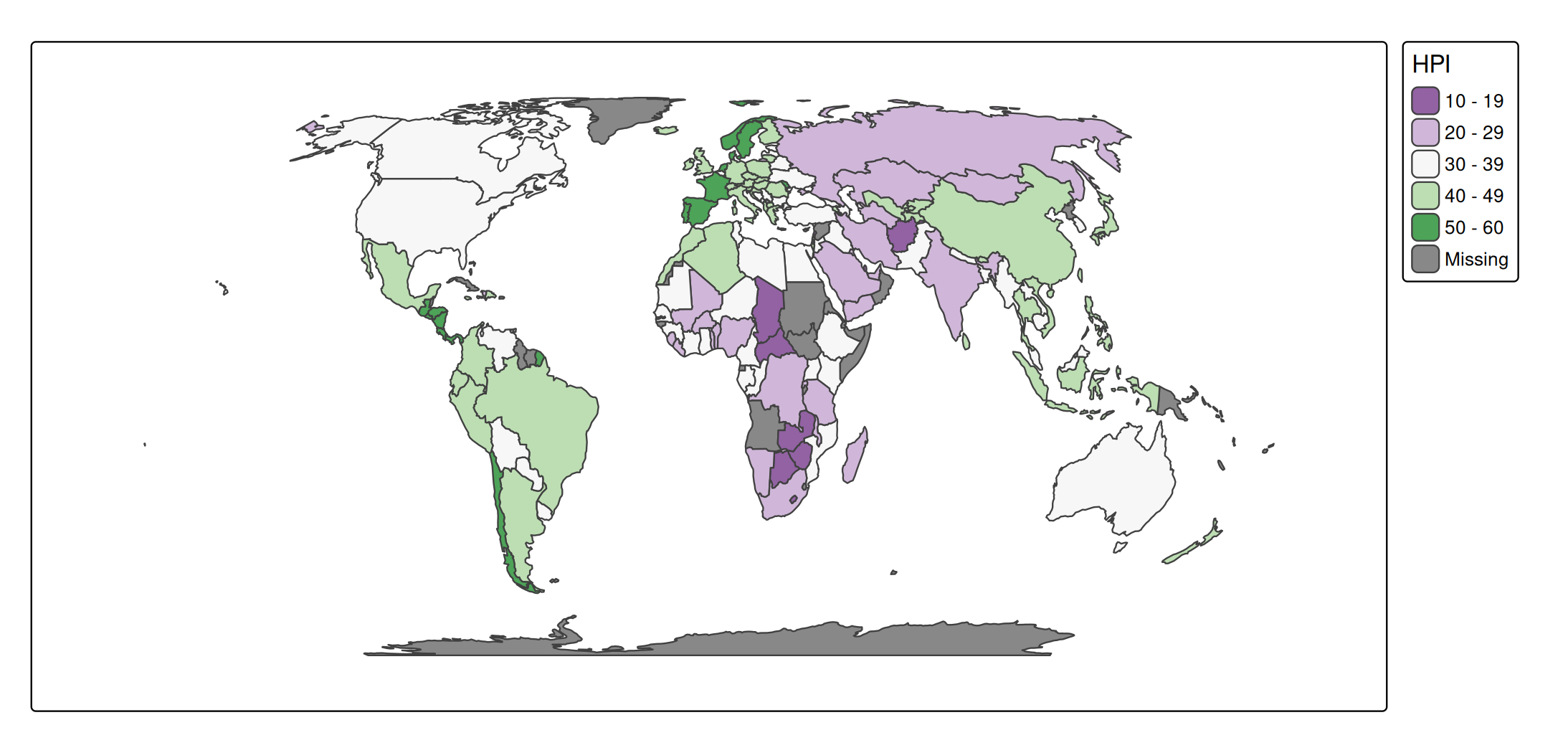

tm_shape(World, crs = "+proj=eqearth") +
  tm_polygons("HPI", fill.scale = tm_scale_intervals(values = "pu_gn")) +
  tm_layout(inner.margins = c(0.1, 0.1, 0.1, 0.1))

Margins are covered in detail in the margins vignette.

Component sizes, paddings, and spacing

The width and height of components, and the paddings, offsets, and spacing between and inside them, are expressed in text line heights: the height of one line of text at the current font size. This makes the layout scale naturally with the font size. It applies to, among others, the width/height of tm_legend(), tm_scalebar(), tm_title(), and tm_inset(), the bg.padding and halo widths of tm_text(), the space of tm_xlab()/tm_ylab(), and the xmod/ymod offsets of tm_text().

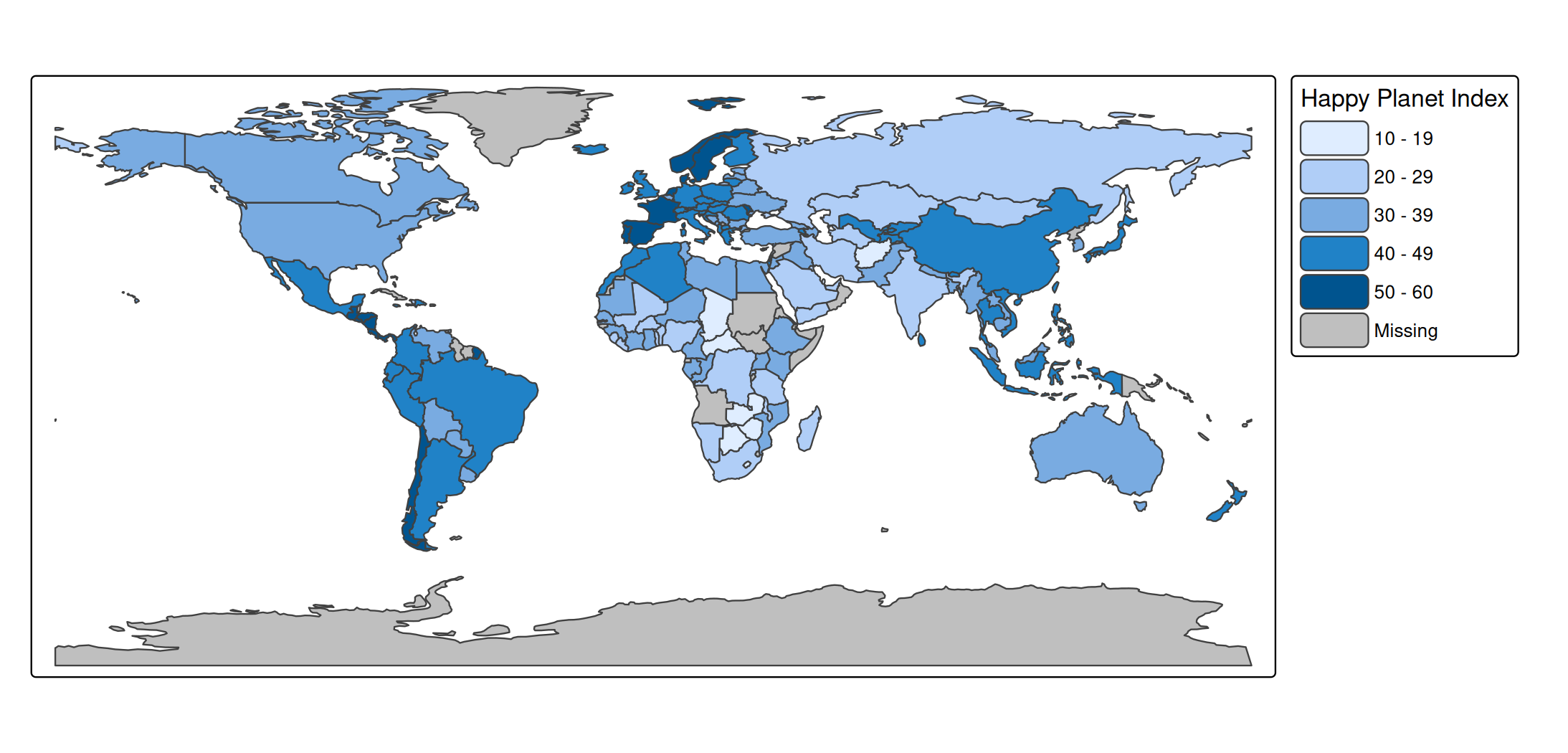

tm_shape(World) +
  tm_polygons(
    fill = "HPI",
    fill.legend = tm_legend(
      title = "Happy Planet Index",
      item.height = 1.5,
      item.width = 3))

For tm_legend() specifically, a negative width or height switches the unit to approximate pixels; the relation between line heights and pixels is governed by the absolute_fontsize option.

Font sizes

Font sizes for components (text.size, title.size, the size of panel labels, scale-bar text, etc.) are multipliers of the base font size, the same convention as cex in base R and as text size in tm_text(). For example, the default legend text size is 0.7 and the default legend title size is 0.9.

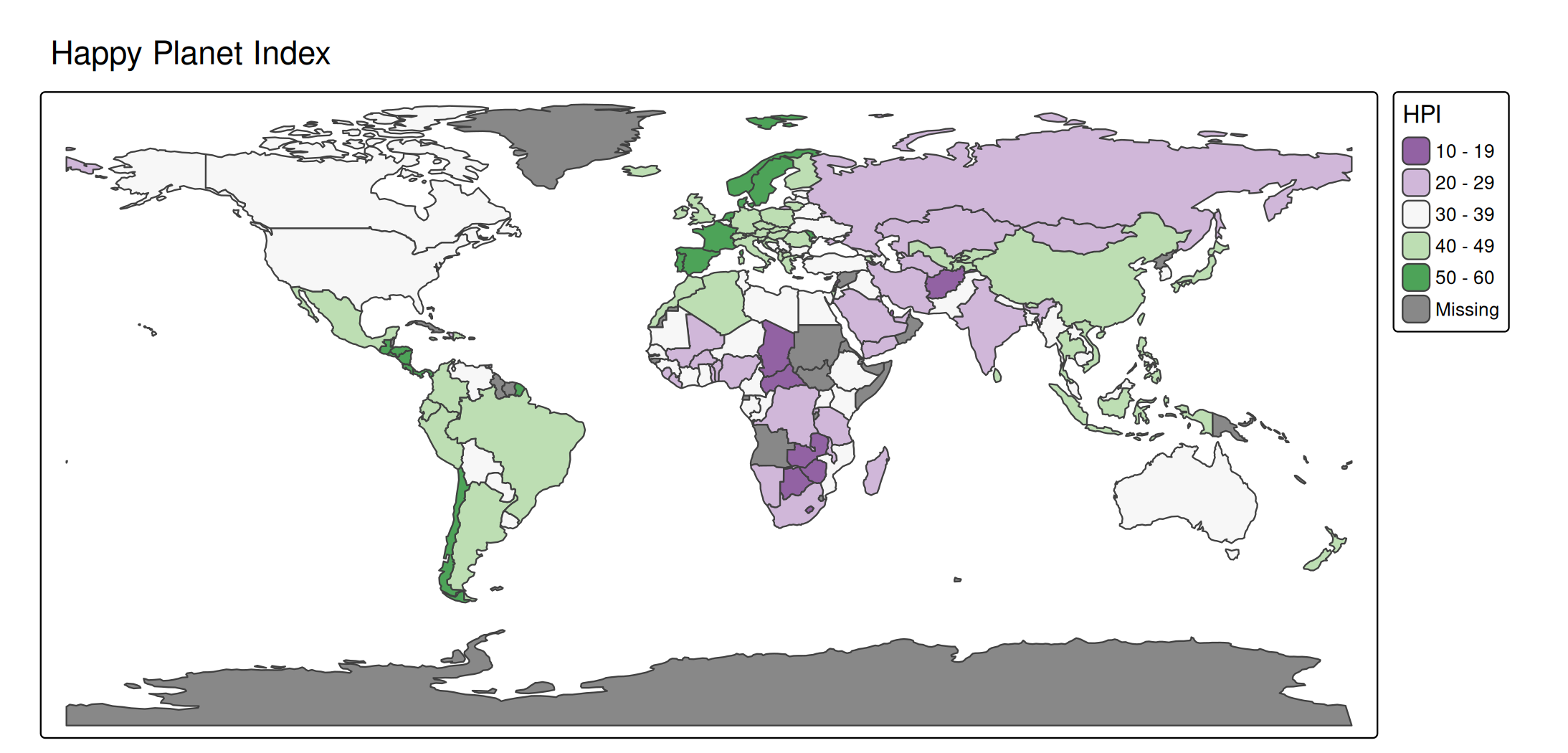

tm_shape(World) +
  tm_polygons("HPI", fill.scale = tm_scale_intervals(values = "pu_gn")) +
  tm_title("Happy Planet Index", size = 1.2)

Global scaling

The single option scale (set via tmap_options(scale = ...) or tm_layout(scale = ...)) multiplies all sizes at once: symbol sizes, line widths, and font sizes. It is the quickest way to scale a whole map up or down, for instance when exporting at a different size. The vignettes in this site use tmap_options(scale = 0.75).

Positions

Component positions are not a numeric unit but a small grammar of their own: a tm_pos object created with tm_pos_in() or tm_pos_out(), or a shortcut of two keywords (horizontal: "left", "center", "right"; vertical: "top", "center", "bottom"). See the positions vignette for details.

Summary

Quantity Unit
Colors (fill, col, bgcol) color name or hex string
Color palettes (values) vector of colors, or a cols4all palette name
Transparency (*_alpha) proportion 0–1
Symbol size (symbols, bubbles, squares, dots) typographic lines (≈ 1/6 inch)
Circle size (tm_circles) meters (numeric or units object)
Text size (tm_text, tm_labels) multiplier of the base font size
lwd base R line-width units
lty integer 1–6 or name
shape pch integer 1–25 or single character
angle degrees, clockwise from north
inner.margins relative to the map frame (0–1)
outer.margins, meta.margins, paddings relative to the device (0–1)
Component widths/heights, spacing, xmod/ymod text line heights (legend: negative ⇒ pixels)
Font sizes (text.size, title.size, …) multiplier of the base font size
scale global multiplier for sizes, line widths, fonts
Positions tm_pos object or two keywords
